Submitting General Images
General image submissions use the REcommended Metadata for Biological Images (REMBI) standard to describe biological images and their metadata. This standard facilitates the sharing and reuse of biological image data across research communities and platforms.
Prerequisites
Important
This section applies if you are submitting images to a Biodata profile [1]. For sample image submissions under Tree of Life (ToL) [2] profiles, see Uploading Sample Images section.
A Biodata profile is needed to proceed with this section. Refer to Steps to Create a Biodata Profile to create one. Skip this step if you have already done so.
Note
Samples: Submit samples before uploading image manifests. See Samples submission (under Biodata Profiles) for details.
Data files: Upload all required data files before submitting image manifests. See: Uploading Data Files.
Accessing the Images Page
Create a profile following the steps in Biodata profile creation. Then, access the Images page via any of the following methods:
Using the Components Button
-
Click the
component button in the
Components column as shown below:

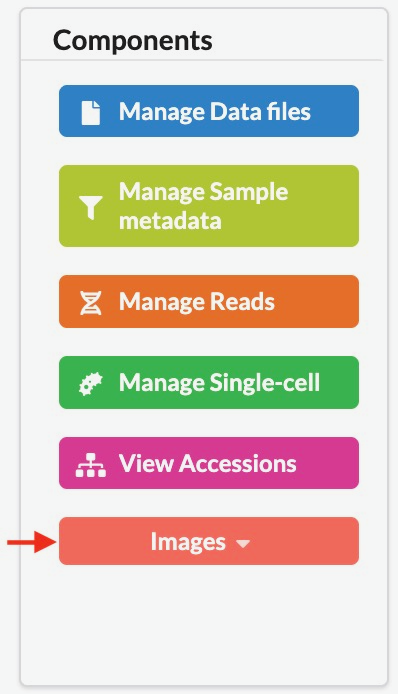

Button to access the Images page (highlighted)
-
Select Manage General images option to navigate to its page:
Dropdown menu showing General images option
Using the Components Icon Navigation Pane
If you are unsure what each icon represents, you can perform any of the following:
Hover over the icon in the component icon navigation pane to see a tooltip with the component’s name
Refer to the component button image above
Refer to the What are profile components? FAQ
Note
The navigation pane will not display the icon associated with the page that is currently being viewed.
If a component has subcomponents, a dropdown menu is shown when at least two items are available. However, if you are viewing a subcomponent’s page and only one item remains, that item is displayed directly in the navigation pane.
Navigation pane showing the Images icon
Clicking the Images component icon in the navigation pane will display a dropdown menu with the available subcomponents as shown below:
Navigation pane showing General images icon
Upload images
-
Click the dropdown menu to choose a checklist [3].

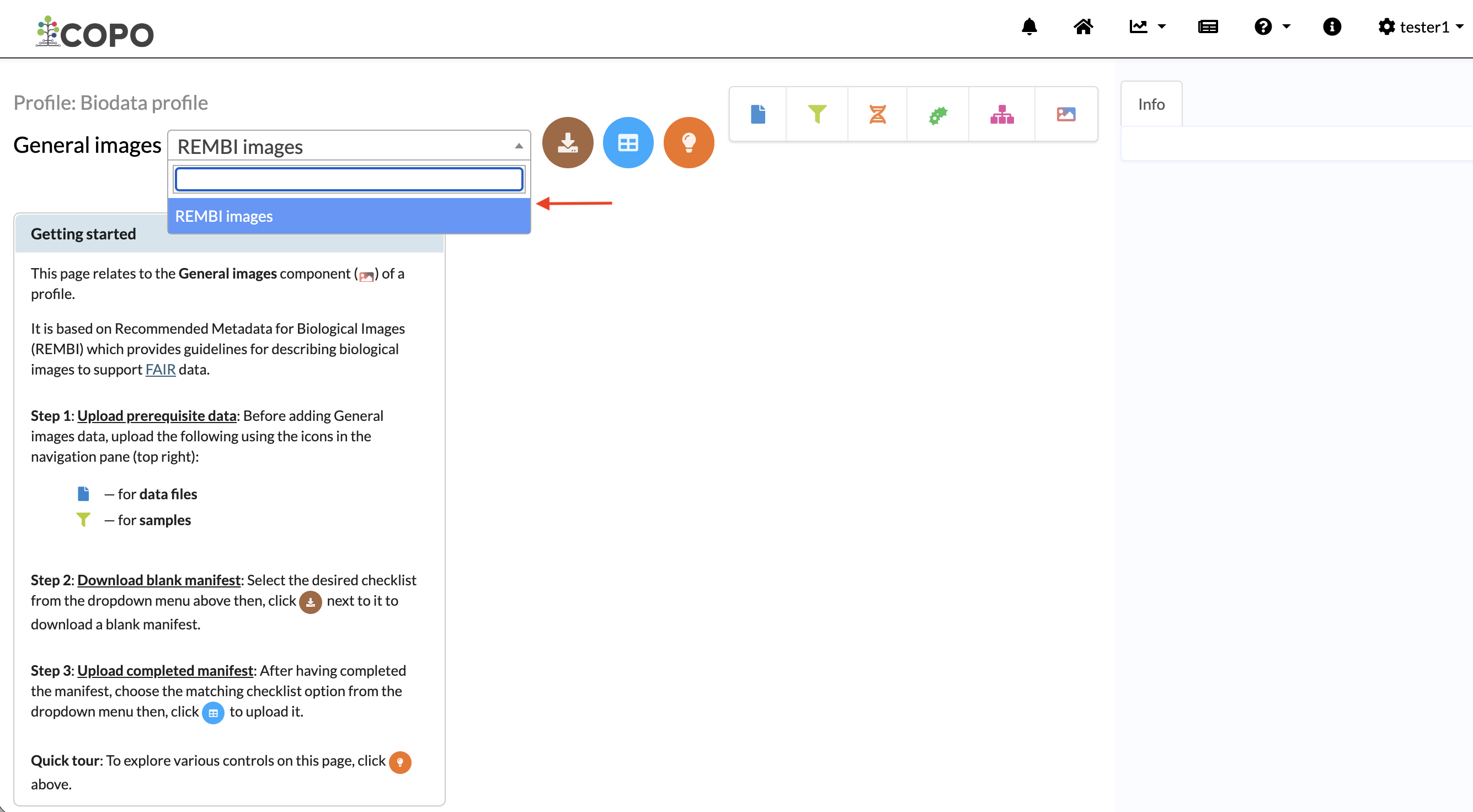

Pointer to dropdown menu for images
Hover over each option to view its description. An overview of each option is provided in the Image Manifest Checklists section.
Checklist options for image submissions
-
Click the
button to
download a blank manifest [4].A manifest is a spreadsheet file used to record metadata for submission.
-
Fill in the downloaded manifest then, click the
button to upload it from your local
(computer) system.Please ensure that the manifest that you are uploading matches the checklist type selected in step 1. You will encounter errors if the uploaded manifest does not correspond with the selected dropdown menu checklist option.

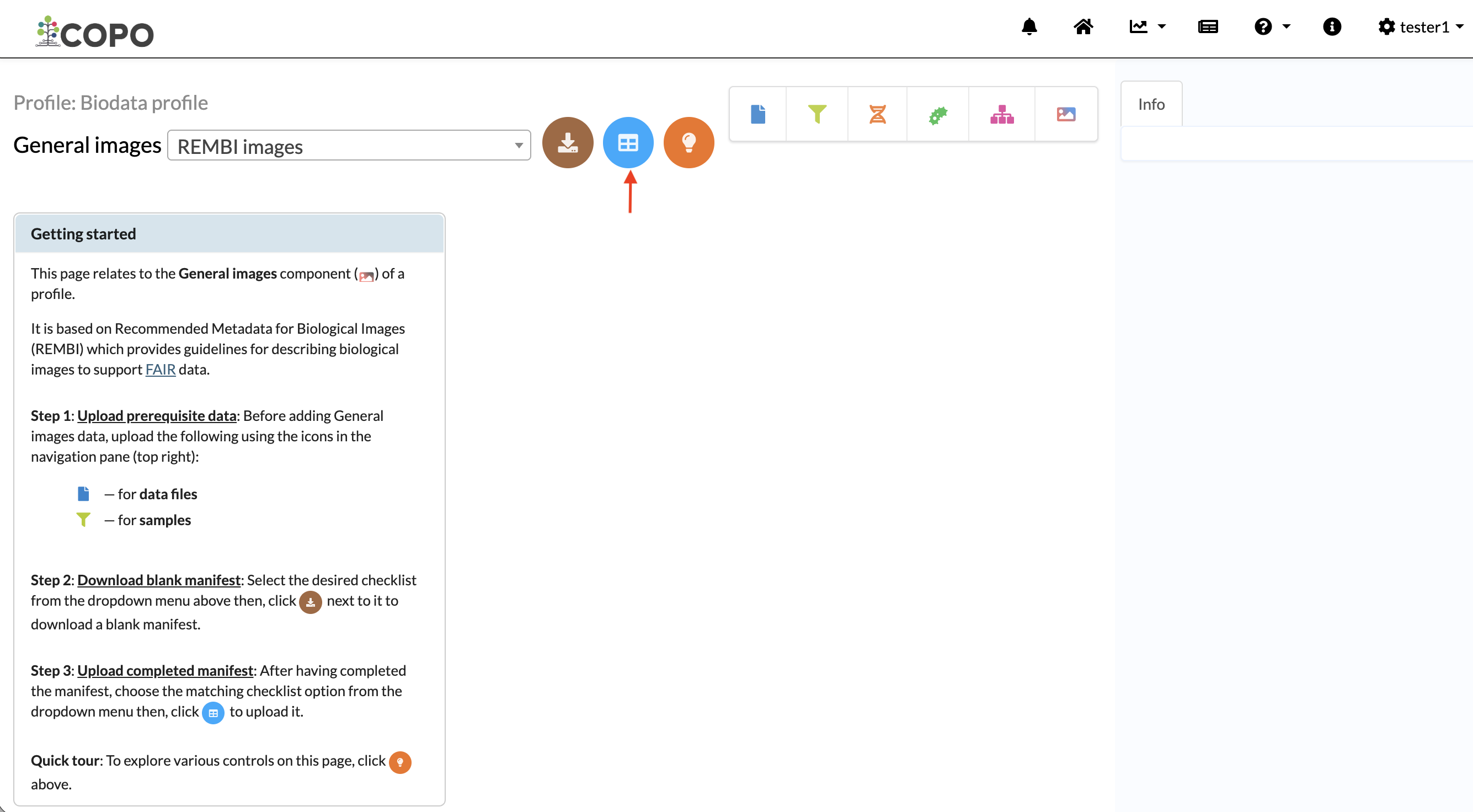

Click “Add study from spreadsheet” button to open an upload dialogue
-
A dialogue is displayed. Click the
button in the dialogue to choose the spreadsheet file from your local system.

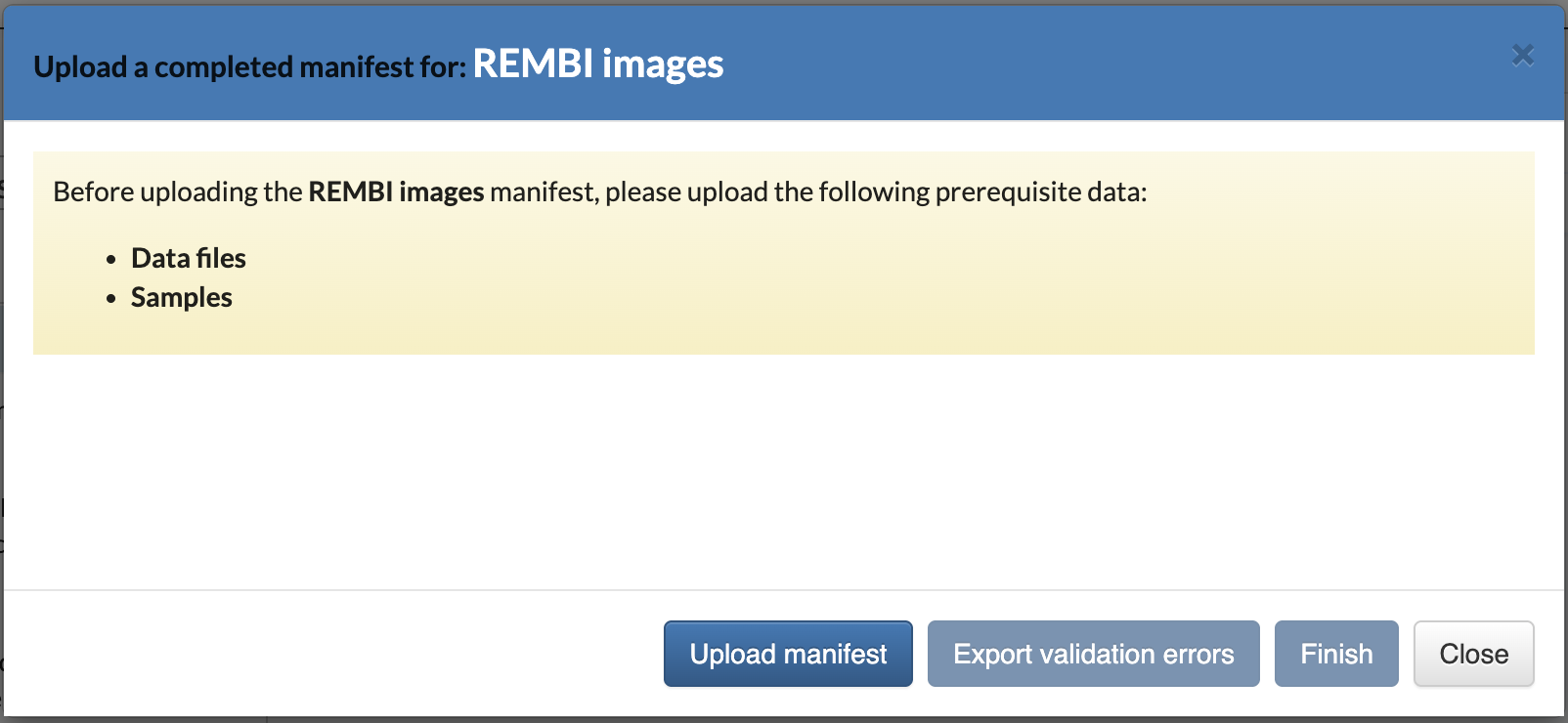

Click ‘Upload manifest’ button
-
The uploaded data is shown in a preview before final submission. Click the
button to finalise the upload.

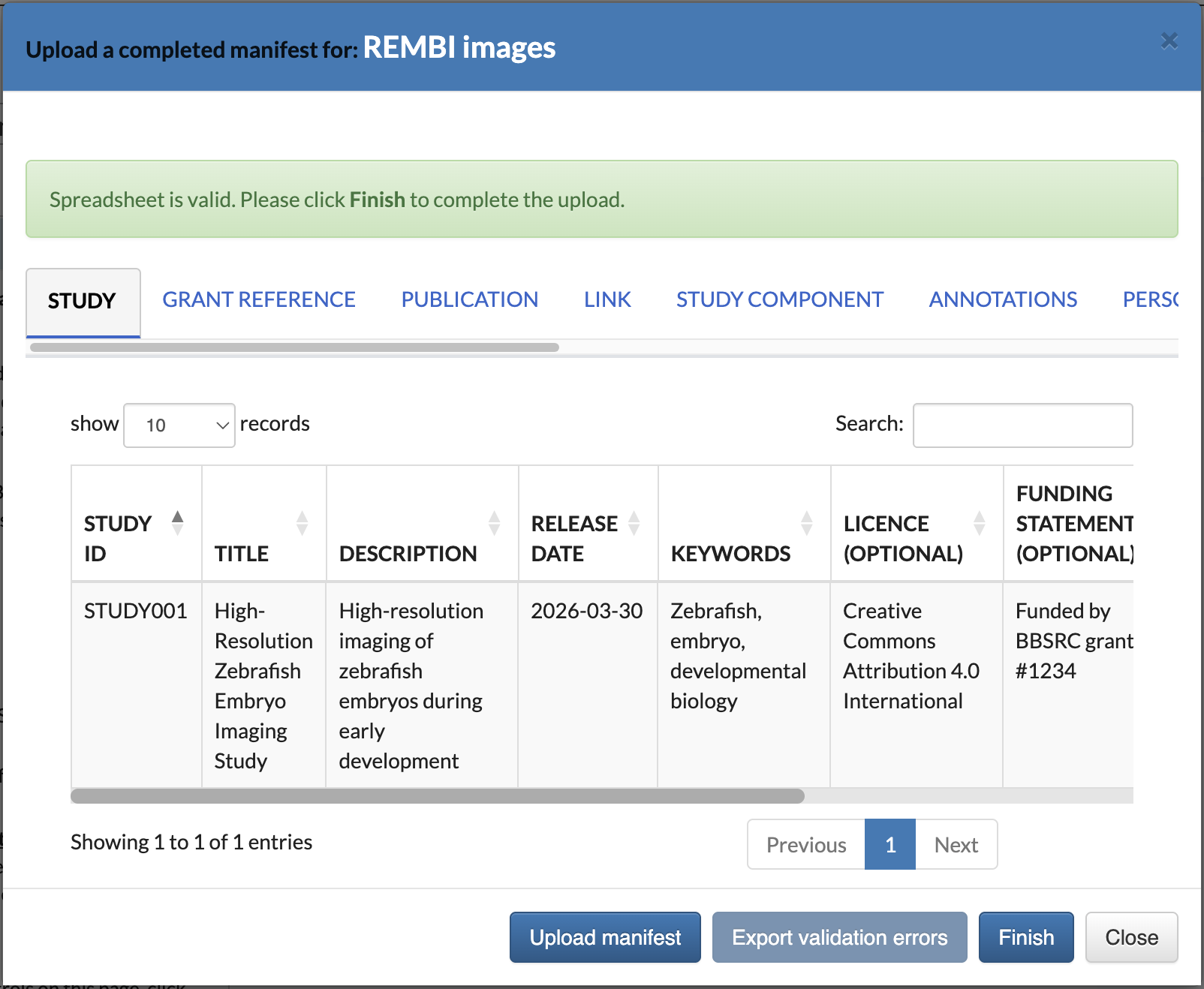

Images upload preview
-
The new image data will be displayed on the General images page after a successful validation.

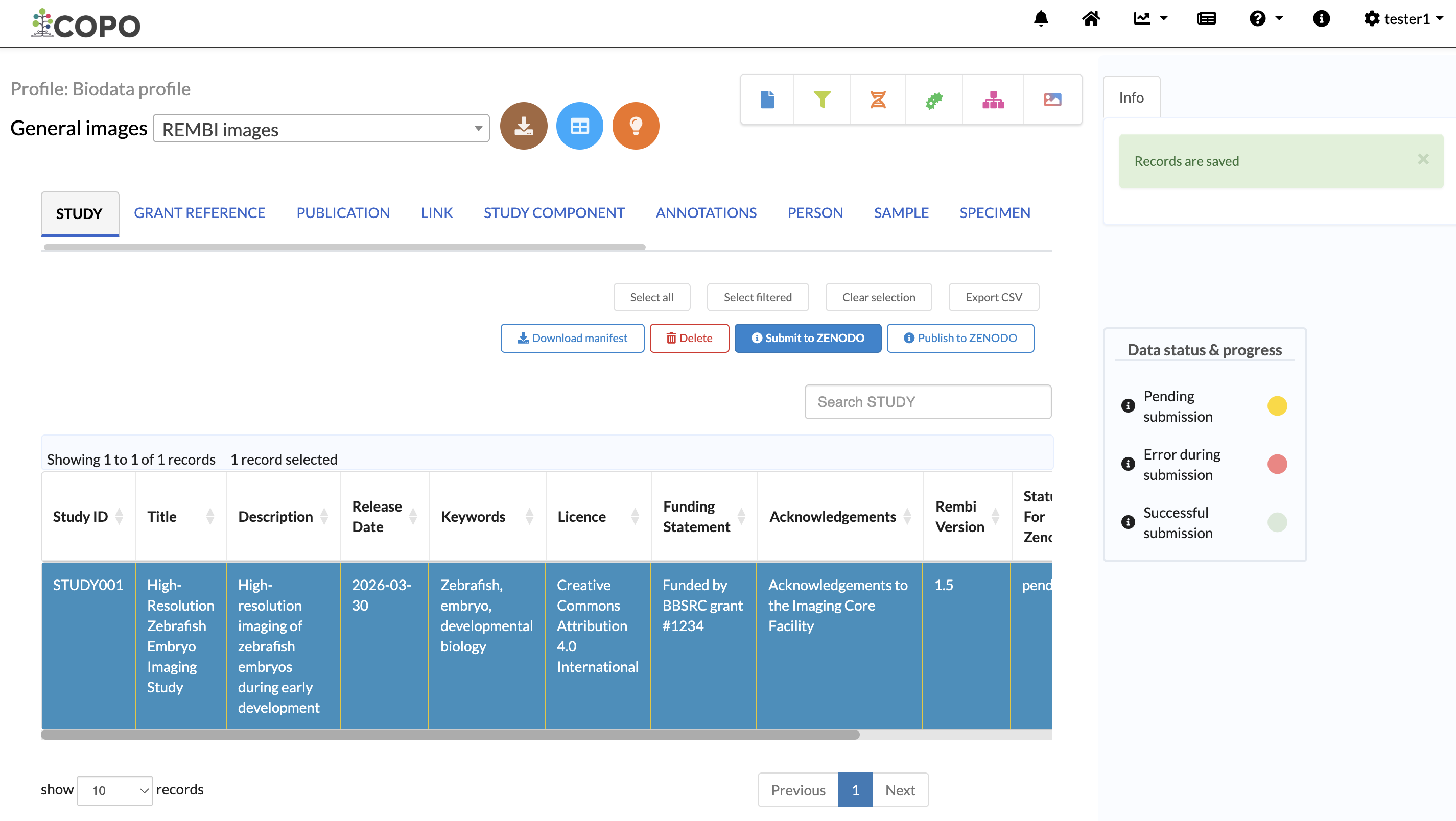

Images page showing the uploaded data
Submit Images
Note
Follow the steps in Upload images to upload data before proceeding with the submission.
-
The following repositories are supported for image submissions:
Zenodo via
button
-
After uploading data, select a row in the data table under the STUDY tab.
Then, click the
button to submit to Zenodo.Hint
The first row of the data table under the STUDY tab is selected by default. Selected rows are indicated by a blue background colour.
Note
Please ensure that the selected record is under the desired checklist option. If not, choose another option from the dropdown menu, then select a row in the data table.
-
Wait for the submission process to be completed. The submitted record’s status and accessions can be viewed in the data table’s respective columns. See the sections below for details.
Make Data Public
Submissions are private by default. You can make the data publicly accessible by referring to the steps in the Publishing Data at Data Level section.
View Submission Status
Hint
The Data status & progress legend, located on the right side of the
data table, shows the different stages of submission processing. Hover over
the
to see description for each status.
For more details, see the How can I check the status of my data submissions? FAQ section.
The submission will be scheduled for processing after the
button is clicked.
The row of the submitted record will be highlighted in green indicating that
the submission has been successful.
If the submission was unsuccessful or has not been assigned any accessions, the table row will be highlighted in red. Its status is indicated in the following columns:
Status for Zenodo: Displays the Zenodo status assigned to the project
View Accessions
Accessions are unique identifiers assigned to submissions after they have been successfully submitted to public repositories.
The accession columns are:
Accession for Zenodo: Displays the Zenodo accession assigned to the project
Clicking any accession in the data table will open the corresponding record in the associated repository. You can also find the same record by searching for the accession directly in the repository.
Tip
Alternatively, click the
icon located in the
top-right corner of the data table to navigate to the Accessions page
that displays accessions for all submissions.
