Adding Other Data Types

Overview

Metadata [1] for a new data types can be added to COPO by following the data structure described in the PowerPoint presentation. The presentation provides a visual representation of the data structure and the relationships between the different components of data.

The metadata is then presented in a manifest [2] which is also known as a spreadsheet or checklist [3].

Mandatory spreadsheet worksheets

Names of worksheets that should be included in the spreadsheet for the new data type

Worksheets	Description
data	This worksheet contains the fields for the new data type. It is the main worksheet that defines the structure of the data. See the Mandatory columns in data worksheet tab for the main columns that should be included in the data worksheet.
allowed_values	This contains the possible values for a field and is used to validate the values entered for the field in the data worksheet.
checklists	This worksheet contains the key (i.e. the identifier), name and description of the checklist for the new data type.
components	This worksheet lists the name and label of each component used in the data worksheet. The component name is indicated by the component_name column in the data worksheet. Components are also regarded as worksheets which group related fields together. The submission repository is also configured in this worksheet. It identifies the repository where the data will be submitted to and is represented as repository_xx column where xx is the name of the repository (e.g. repository_ena, repository_zenodo).

Mandatory columns in data worksheet

Description of column names present in the data worksheet

Data fields	Description
component_name	The name of the worksheet that the field belongs to. It is used to group related fields together.
namespace_prefix	This reflects an established standard that the field belongs to and matches any of the values in the key column in the standards worksheet. If the field does not belong to any established standard, it should have the value ei in this column.
term_name	The name of the field.
term_label	The label of the field.
identifier	This uniquely identifies fields within a component.
referenced_component	This refers to the name of the worksheet that the field is associated with. It defines relationships between fields within the same component or across different components.
term_description	This provides additional information about the field.
term_example	This provides an example and guidance on the expected format of the field.
term_regex	A regular expression that is used to validate the data entered for the field.
term_error_message	This is used to provide feedback to the user when the data entered for the field does not match an expected outcome.
term_cardinality	This defines the number of values that can be entered for the field. It expects a single value (single) or multiple values (multiple).
term_type	This describes the type of data that the field expects. It can be a string, enum (which stands for enumeration) or file. If it is an enumeration, the possible values for the field should be defined in the allowed_values worksheet. If it is a file, the system will expect a file to be uploaded.
term_reference	A URL link referencing a field. It is used to provide additional information about the origin of the field.

Examples of Adding Other Types of Data in COPO

Tip

Each link below takes you to the corresponding GitHub directory containing the spreadsheet files for that data type. Select a link to view the files and see how the data is structured.

The spreadsheet file containing the main schema can be identified by the substring _schema_main_.

• Earlham Data Portal (EDP) data

• Reads data

• Image data

• Single-cell data

---

Extending existing checklist data

Choose one of the data configuration of the existing checklist [3] options in the Examples of Adding Other Types of Data in COPO section above that corresponds well to your new checklist data type and download the spreadsheet file for it before proceeding with either of the subsequent sections:

• With a new checklist type

OR

• With additional fields for an existing checklist type

With a new checklist type

1. Open the spreadsheet and navigate to the standards worksheet.

   Fill in the details of the new standard [4] of your new data type under the columns - key and name.

   For example, if you are using the Single-cell main schema spreadsheet to add a new data type, add a row with the following values:

   • key: ndt

   • name: New Data Type (NDT)

   Note

   The key column represents the abbreviation of your new data type while the name column represents the full name of it.

   You can choose any abbreviation and name that is relevant to your new data type.



   Adding a standard in standards worksheet

2. Navigate to the technologies worksheet.

   If your new data type will be associated with a technology that is different to what is displayed in the worksheet, fill in the key and name of the new technology in a new row under the respective columns. Otherwise, skip this step.

   Note

   If providing a new technology, the key column represents the abbreviation of it while the name column represents the full name of it.



   Single-cell shown as the only available technology option in the technologies worksheet

3. Navigate to the checklists worksheet

   In a new row, fill in the details of your new checklist option under the columns - key, name, description, standard and technology.

   The standard and technology columns should match the values that you have added in the standards and technologies worksheets respectively.

   For example, in the screenshot below, “My new data type metadata” is a Single-cell option that has been added where:

   • key: version_ndt_sc_rnaseq

     Note

     The key must begin with the prefix version_ and end with the suffix _sc_rnaseq to indicate that it relates to Single-cell RNA sequencing data.

     The middle part of the key (ndt) should represent an abbreviation of the new data type and match the key (i.e. namespace) that was added in the standards worksheet.

     Similarly, the suffix of the key should match a key in in the technologies worksheet relevant to your new data type. In this example, it is _sc_rnaseq which represents Single-cell RNA Sequencing.

   • name: My new data type metadata

   • description: This is a new data type.






   Adding details of the new data type in the checklists worksheet

4. In the data worksheet,

   • Insert a column to the far right of the existing columns in the worksheet with the name version_ndt_sc_rnaseq. This column name should match the key that you added in the checklists worksheet.

     Tip

     Alternatively, you can copy and paste an existing column (e.g. version_mixs_sc_rnaseq) and rename it to version_ndt_sc_rnaseq if it best suits your new data type. This will ensure that the new column has the same mandatory and optional fields as the existing column’s. You can then modify the values in the new column to suit your new data type.

     Notice that the adjacent column names also have the prefix version_ and suffix _sc_rnaseq which indicates that they are also related to Single-cell RNA Sequencing data but with different data types (e.g. DwC, MIxS, FAANG, ToL).



     Adding a data type column in the data worksheet

   • Existing terms:

     Of the existing terms [5] in the term_name column in the worksheet, insert M (which means mandatory) or O (which means optional) relevant to your new data type in the new column version_ndt_sc_rnaseq.

     If a term is not relevant to your new data type, leave the cell blank.

     All terms have a description in the term_description column. You can use this description to determine whether a term is relevant to your new data type.

     • All terms that have ei in the namespace_prefix column are regarded as custom fields that should be marked as mandatory (M ) or optional (O) depending on the checklist type in the new `version_xx column.

     • Terms that have other namespace prefixes in the namespace_prefix column like dwc, dcterms, mixs, faang, tol, and schema.org can be optional or mandatory for your new data type and as such should be marked as O or M accordingly or left blank if irrelevant.






     Adding existing fields to the new data type column in the data worksheet




   • New terms:

     If your new data type requires fields that are not present in the term_name column of the data worksheet, identify the component in the component_name column to which the new field belongs. Then, insert a new row immediately after the last existing term for that component.

     Thereafter, fill in the details for each new field you add in the corresponding columns.






     Adding new fields for the new data type column in the data worksheet




     The screenshot above shows two ways of adding new fields to the new data type version_ndt_sc_rnaseq. It is outlined in red boxes and described below:

     1. Adding new metadata under a new component: The new metadata is added under a new component called new_example_component. The new fields are added in new rows immediately after the last existing term of a component.

        In this case, the last existing term for the analysis_derived_data component is other_derived_cell_attributes. The new component, new_example_component, is added in a new row immediately after it.

     This new component has four new fields - field_1, field_2, field_3 and field_4 with their respective details filled in the corresponding columns and the study_id field as the identifier field.

     2. Adding new metadata under an existing component: New metadata is added in new rows immediately after the last existing term for the under the existing component, sequencing.

        In this example, field_0 and field_1 are the new fields that are added under the sequencing component.

5. Save the spreadsheet file, commit it and push it to the COPO-schemas GitHub repository.

6. Follow the steps in the Update schema file version (optional) section to update the schema file version (optional).

7. Proceed to the Persist added data to COPO section for the next steps.

With additional fields for an existing checklist type

1. Open the spreadsheet and navigate to the data worksheet.

2. Choose any of the existing checklist types in the worksheet that is relevant to your new data type. They are identified with the prefix version_ in the column names.

   We’ll choose version_mixs_sc_rnaseq and version_faang_sc_rnaseq in this example proceed with the next steps.



   Red rectangle highlighting the existing checklist types in the data worksheet




3. Choose a component in the component_name column to which the new fields will belong to. Then, insert new rows immediately after the last existing term for that component.

   In this example, we will add new fields under the existing components -

   • lib_prep - The last existing term for this component is library_strategy. We will insert a new row immediately after it.

   • sequencing - The last existing term for this component is num_replicons. We will insert a new row immediately after it.






   Red arrow highlighting where new field data will be inserted in the data worksheet




   In the screenshot below, notice that the inserted row in the lib_prep component has M in the version_faang_sc_rnaseq column and nothing in the other version_xx columns. This indicates that the inserted field (also known as term) is mandatory for the Functional Annotation of Animal Genomes metadata (FAANG) checklist type and not relevant to the other checklist types.

   Note

   Fields that belong to an established standard in the data worksheet must have any of the standards listed in the key column of the standards worksheet as a value in the namespace_prefix column of the data worksheet.

   Custom fields must have ei as the namespace prefix in the namespace_prefix column of the data worksheet. These fields can be marked as M or O in the version_xx columns, depending on whether they are mandatory or optional for your new data type.

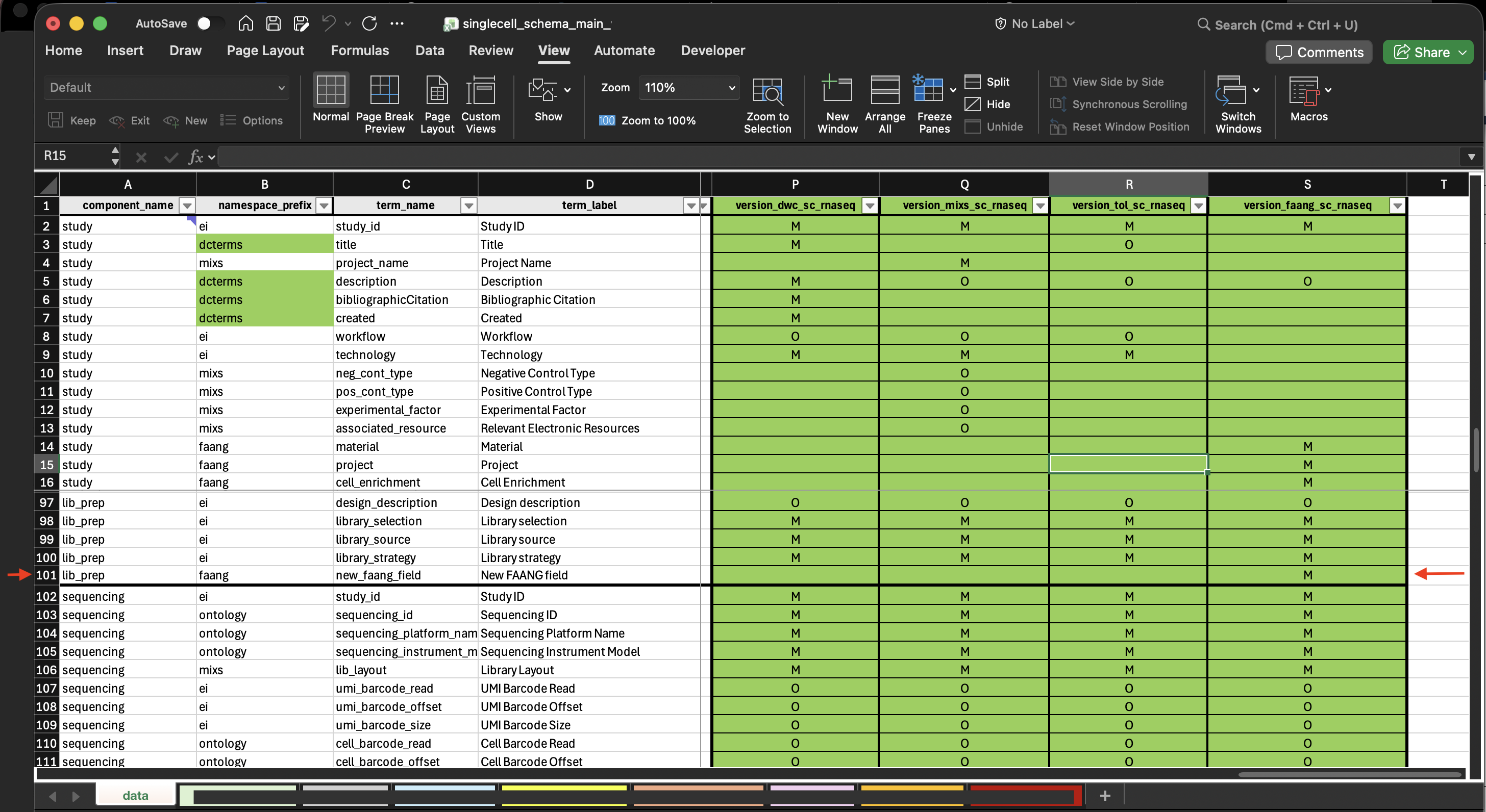

   Red arrow highlighting inserted data in lib_prep component in the data worksheet




   Similarly, the inserted row in the sequencing component has O in the version_mixs_sc_rnaseq column and nothing in the other version_xx columns. This indicates that the inserted field is optional for the Minimum Information about any (x) Sequence (MIxS) checklist type and not relevant to the other checklist types.



   Red arrow highlighting inserted data in sequencing component in the data worksheet




4. Save the spreadsheet file, commit it and push it to the COPO-schemas GitHub repository.

5. Follow the steps in the Update schema file version (optional) section to update the schema file version (optional).

6. Proceed to the Persist added data to COPO section for the next steps.

---

Update schema file version (optional)

If you’ve made significant changes to the data structure of a main schema spreadsheet file, it is recommended to increment the existing version number to reflect the changes made or add the path of the new schema file to the COPO_SCHEMA_URL list in the data.py file located in the src/main_config/settings directory of the project of the COPO-production GitHub repository.

Important

The key (which is the schema name) in the MANIFEST_VERSION dictionary in the data.py file must match the schema name configured for the data type component in the setup_profile_types.py Django command.

Extend the MANIFEST_VERSION dictionary in data.py

...

MANIFEST_VERSION =  {
   "ASG": "2.5",
   "DTOL": "2.5",
   "DTOLENV": "2.4",
   "DTOL_EI": "2.4",
   "ERGA": "2.5.1",
   "DTOL_BARCODE": "",
   # Update the version number of existing schemas
   "COPO_SINGLE_CELL": "0.4",
   "COPO_IMAGE_REMBI": "0.1",
   "COPO_IMAGE_STX_FISH": "0.1",
   "COPO_READ": "0.1",
   "EI_EDP": "0.1",
   # OR...Add schema name and version number for your new data type here
   # "<data-type-schema-name>": "<version-number>",
}

...

Extend the SINGLE_CELL_SCHEMAS_URL list in data.py

...

SINGLE_CELL_SCHEMAS_URL = [
   "COPO_SINGLE_CELL": f"https://github.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/single_cell/singlecell_schema_main_v{MANIFEST_VERSION['COPO_SINGLE_CELL']}.xlsx",
   "COPO_IMAGE_REMBI": f"https://github.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/images/rembi_image_schema_main_v{MANIFEST_VERSION['COPO_IMAGE_REMBI']}.xlsx",
   "COPO_IMAGE_STX_FISH": f"https://github.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/images/stx_fish_image_schema_main_v{MANIFEST_VERSION['COPO_IMAGE_STX_FISH']}.xlsx",
   "COPO_READ": f"https://github.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/reads/reads_schema_main_v{MANIFEST_VERSION['COPO_READ']}.xlsx",
   "EI_EDP": f"https://github.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/edp/edp_schema_main_v{MANIFEST_VERSION['EI_EDP']}.xlsx",
   # Add the path to your spreadsheet file here
   # e.g. "https://raw.githubusercontent.com/EarlhamInst/COPO-schemas/raw/refs/heads/main/<folder-name>/<data-type-name>_schema_main_v{MANIFEST_VERSION['<data-type-schema-name>']}.xlsx"
]

...

---

Persist added data to COPO

Now that the data structure has been amended and the new data type has been added to the spreadsheet file in the COPO-schemas GitHub repository, the following steps guide how to persist added data type(s) to the COPO website so that they are available as a dropdown menu option and the new data is available within the downloaded spreadsheet file for the respective checklist type.

Navigate to the COPO frontend virtual machine (VM) and SSH into it

ssh <name-of-vm>

For a local setup, skip this command and proceed to the next one.

List all running Docker containers using the terminal

docker ps

You may need to run the command with sudo if you are not logged in as a user with the required permissions to run Docker commands.

Enter the COPO web container

docker exec -it <copo-web-container-id> bash

Replace <copo-web-container-id> with the actual container ID of the COPO web container found from running the docker ps command.

On the production, demonstration and development virtual machines (VMs), the COPO web container can be identified by copo/copo-new-web:vxx where xx is the version of the Docker container image.

On the other hand, locally, the COPO web container can be identified by local_copo_web:vxx where xx is the version of the Docker container image.

Execute the Celery command to insert and update the new data in COPO

celery -A src call src.apps.copo_single_cell_submission.tasks.update_singlecell_schema

This command calls the update_singlecell_schema Celery job defined in the src/celery.py file, which in turn calls the update_singlecell_schema Celery task defined in the src/apps/copo_single_cell_submission/tasks.py file.

The updateSchemas function in the src/apps/copo_single_cell_submission/utils/SingleCellSchemasHandler.py file is then called and is responsible for parsing the spreadsheet file from the GitHub repository, updating the system’s database and by extension the website with the new data.

To verify that the new data type has been added, navigate to the Single-cell submission page under a Biodata profile on the COPO platform and check if the new data type is available in the dropdown menu or the new data is available within a downloaded spreadsheet file from the page.

---

Related sections

See also

• Adding Sample Types

---

Footnotes

[1]

See term: Metadata

[2]

See term: Manifest

[3] (1,2)

See term: Checklist

[4]

See term: Standard

[5]

See term: Term
